Short answer: the Kia Sorento D4HB 2.2 CRDi diesel is a strong, durable engine with four recurring problems that owners need to budget for between 150 000-250 000 km: an EGR cooler crack that allows coolant into the intake, an oil pump balance-shaft chain stretch causing a metallic rattle, a turbo wastegate actuator sticking from carbon, and DPF blockage on stop-start use.
Key Takeaways
- D4HB 2.2 CRDi fitted to Sorento XM, UM (2009-2020) and Carnival equivalents
- Class-leading torque (440 Nm late) and decent economy (7.5-8.5 L/100km mixed)
- Four big-ticket failure points: EGR cooler, oil pump assembly, turbo actuator, DPF
- Replacement engine: our engines page lists Sorento engines, including the D4HB, at R22 000-R55 000 (the top of that range is a low-mileage D4HB)
What Is The D4HB?

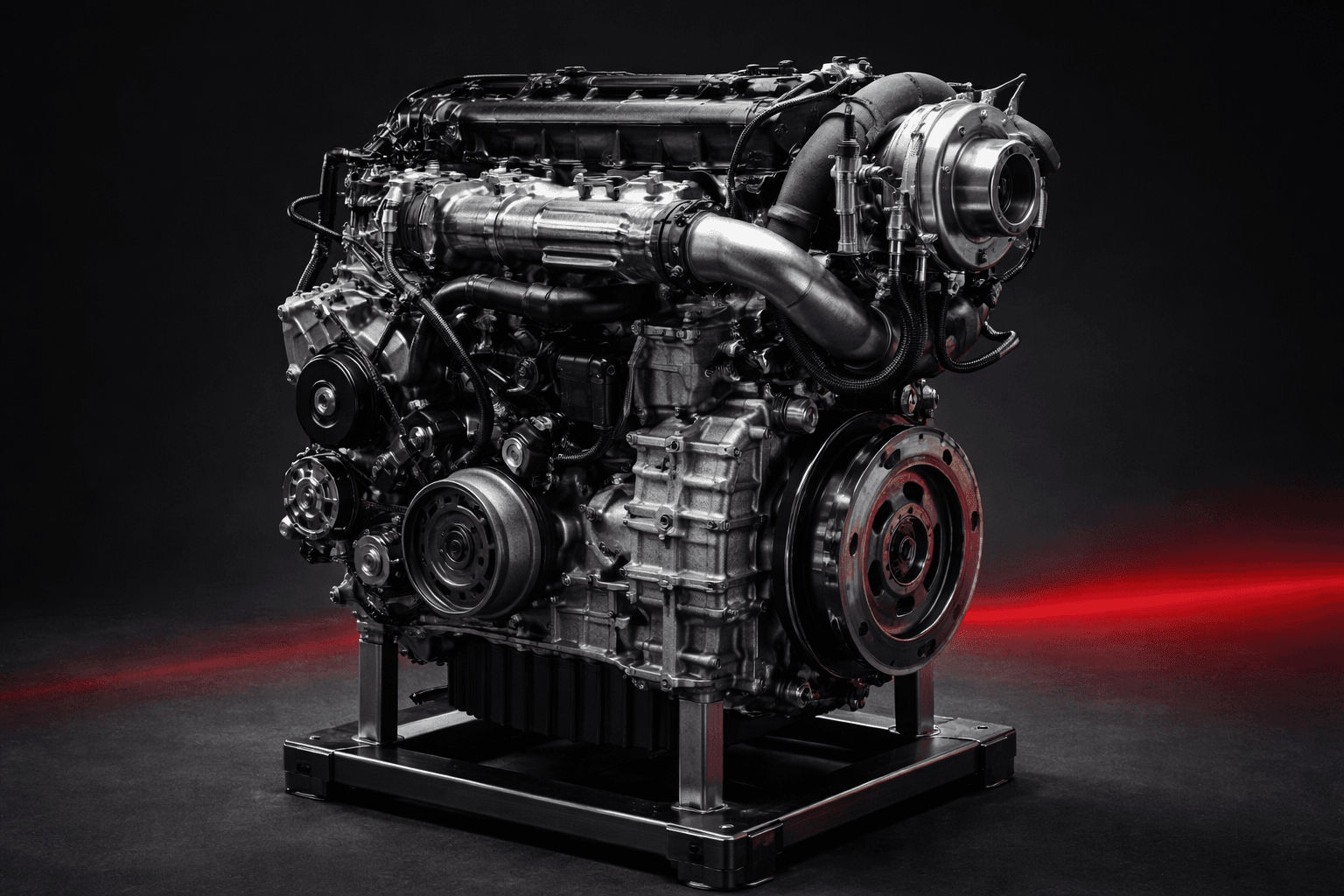

The D4HB is the Hyundai-Kia second-generation 2.2-litre R-family CRDi diesel. It debuted in 2009 in the Sorento XM, was updated for the UM (2015-2020) with more torque and lower emissions, and its successor appeared with Euro 6 compliance. Across the SA range you'll find:
| Sorento Generation | D4HB Variant | Power | Torque | Notable |
|---|---|---|---|---|
| XM (2009-2012) | D4HB Gen 1 | 145 kW | 421 Nm | Bosch piezo injectors, 6AT |
| XM facelift (2012-2015) | D4HB Gen 2 | 145-147 kW | 421-440 Nm | Updated turbo, DPF standard |
| UM (2015-2020) | D4HB Gen 2.5 | 147-151 kW | 440 Nm | 8AT optional, Euro 6 |
| MQ4 (2020+) | D4HE Smartstream | 148 kW | 440 Nm | New balance-shaft design, different platform |
The MQ4-generation uses a different engine (D4HE Smartstream), so this article focuses on the earlier D4HB units.
EGR Valves And Coolers
A cracked EGR cooler is one of the most expensive failures on a neglected D4HB. Ask us for a quote on an OE or OE-quality replacement.
Problem 1: EGR Cooler Cracking
The biggest D4HB headline issue. The water-jacketed EGR cooler — which sits between the EGR valve and the intake manifold to chill recirculated exhaust gas — develops internal cracks at the welded plates from thermal cycling. When this fails, coolant gets into the intake and from there into the cylinders.
Typical symptoms:
- Sweet-smelling white smoke from the exhaust on cold start
- Coolant loss with no visible external leak
- Misfires on a specific cylinder (the one closest to the EGR feed)
- Coolant in the intake manifold when the manifold is dropped
- In severe cases, hydrolock on cold start (catastrophic — bent rod)
Monitor coolant level and white smoke. Catch it early and it's a parts-and-labour job (indicative costs below); ignore it and you can write off the engine.
Indicative cost to fix
- New EGR cooler (OE): R5 500-R7 800
- New EGR valve (often replaced together): R3 200-R4 800
- Gasket and bolt kit: R650-R950
- Fitment labour: R3 500-R5 500
- Total: R12 850-R19 050
Problem 2: Oil Pump Balance Assembly Chain Stretch
The D4HB has a chain-driven oil pump and balance-shaft assembly inside the lower block. The chain and tensioner are wear items that stretch and rattle at 200 000+ km. The noise is a distinctive metallic rattle from the lower right of the engine at cold start, often confused with a stretched timing chain — but the timing chain is on the other side.
Why it matters:
- Untreated, the chain can jump and damage the oil pump drive
- Once the oil pump fails, the engine starves of oil within seconds
- The repair requires dropping the sump and replacing the balance-shaft assembly
Indicative cost to fix
- Balance shaft chain + tensioner + guide kit: R3 800-R5 500
- Oil pump (if assembly replaced complete): R5 500-R8 500
- Sump gasket + sealant: R450-R750
- Fitment labour (sump-out): R4 500-R7 500
- Total: R14 250-R22 250
Problem 3: Turbo Wastegate Actuator Stuck
The D4HB uses a variable-geometry turbocharger (VGT) on most SA-spec units, with an electronically controlled wastegate actuator. The actuator's linkage sticks when carbon builds up on the vanes — usually around 180 000 km in stop-start service.
Symptoms:
- Power loss above 3 000 rpm
- Limp mode after sustained boost demand
- P0299 (low boost) or P2562 (turbo wastegate actuator position sensor) codes
- Whistle from the turbo at part throttle
The fix is usually an actuator + linkage clean + recalibration; if the VGT vanes themselves are scored, the whole turbo needs replacement.
Indicative cost to fix
- Clean and recalibrate VGT actuator: R3 500-R5 500
- New OE actuator (if needed): R8 500-R12 500
- Replacement turbocharger (worst case): our turbochargers page lists the D4HB's Garrett GTB1749V used at R8 500-R14 500; a new OE unit costs considerably more
- Fitment labour: R4 500-R7 500
Problem 4: DPF Blockage On Short Drives
Every diesel particulate filter (DPF) is designed to do a regeneration burn at highway speed every 800-1 200 km — incomplete regenerations let soot accumulate, eventually blocking the filter. On a Sorento used purely for school runs and short commutes, DPF blockage is almost inevitable by 150 000 km.
Symptoms:
- DPF warning light on the dash
- Limp mode with reduced power
- P2002 (DPF efficiency below threshold) or P2453 (DPF pressure sensor circuit) codes
- Active regeneration warning prompts the driver to "drive at speed for 20 minutes"
Two fixes: a forced regeneration via diagnostic tool if the DPF isn't past the point of no return, or a DPF clean / removal-and-bake at a specialist. For replacement DPFs, our DPF page lists a used D4HB unit at R5 500-R9 500, against R14 000-R28 000 for a new dealer DPF.
DPFs And Exhaust System
Ask us for a quote on a used DPF for a D4HB-engined Sorento or Carnival, or on downpipes, flexes and catalytic converter sections.
Total Cost Across Ownership
For a Sorento UM doing 250 000 km in SA service, expect to spend roughly:
| Item | Typical Cost (R) | Likely Mileage |
|---|---|---|
| EGR cooler + valve replacement | R12 850 | 160 000-220 000 km |
| Balance shaft chain refresh | R14 250 | 200 000-250 000 km |
| Turbo actuator clean + recalibrate | R3 500 | 180 000 km |
| DPF forced regen or clean | R3 500 | 130 000 km onwards (recurring) |
| Injector set (preventive) | R16 000 | 180 000 km |
| Total preventive spend | R50 100 | over 250 000 km |
Indicative ranges only, not quotes; prices vary by condition, mileage, supplier and labour rate.
That works out to roughly R20 per 100 km in big-ticket diesel maintenance — not including standard service items (oil, filters, belts, brakes, tyres). For comparison, the same Sorento in petrol Lambda V6 would cost less in maintenance but more in fuel.
When To Replace The Whole Engine
A swap makes sense when:
- The car has 250 000+ km and multiple symptoms compound (EGR + turbo + injector trouble at once)
- A used D4HB long block is available from a clean accident donor
- Total swap cost (a used D4HB is listed in our Sorento range at R22 000-R55 000, plus fitting labour) is less than the running repair total
If your D4HB has dropped a balance shaft chain into the oil pump or chewed a turbo into the bottom end, a used replacement is the right call — browse our Kia engines for sale stock. If only the turbo has failed and the block is sound, a cheaper path is our Kia turbochargers for sale page, which lists the Garrett GTB1749V VNT used on the D4HB 2.2. For broader context on the diesel-versus-petrol Sorento choice, see our used Kia engines for SA roads guide and the CRDi injector failure symptoms walkthrough.
Preventive Maintenance Routine
Preventive habits that help a D4HB last:
- Oil and filter every 10 000 km (not 15 000 — SA dust + diesel ash adds up)
- Fuel filter every 20 000 km (book is 30 000 — too long)
- Coolant flush every 40 000 km with Hyundai-spec Long Life Coolant
- Highway run of 30+ minutes at least every 800 km to clear the DPF
- Diesel system additive at every 4th fuel-up if running rural fuel
- Annual EGR inspection (drop the pipe, look for coolant residue)
